Product Description
Minoru® conductive fabric tape provides improved electrical performance on small size contacts compared to other conventional double sided foil tapes and handling characteristics.
1.Single- sided Fabric Tape
Product Construction

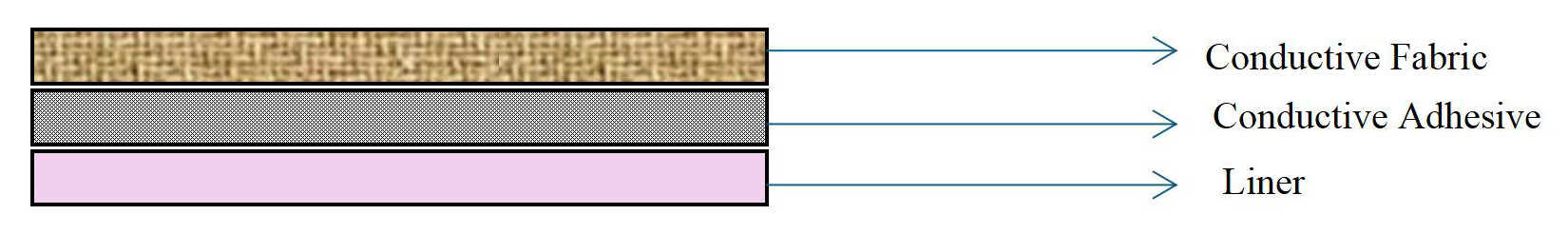

Electrically Conductive Single- sided Fabric Tape 330xxF

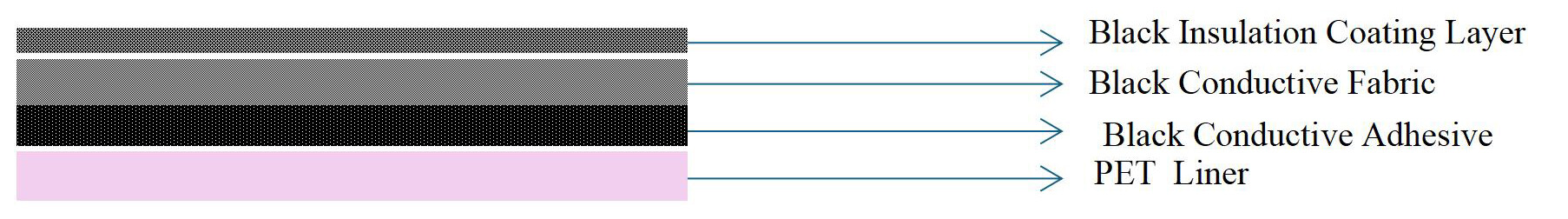

Matte Black Electrically Conductive Single- sided Fabric Tape 330xxBF
| Product No. | 33030F | 33050F | 33080F | 33100F | 33150F | 33200F | 33250F | 33050BF | 33070BF | Test method |
| Color | Gray | Black | — | |||||||
| Tape type | Conductive Adhesive | Black Conductive Adhesive | — | |||||||
| Total thickness | 30um
(28-38) |
50um±10% | 80um±10% | 100um±10% | 150um±10% | 200um±10% | 250um±10% | 50um±10% | 70um±10% | — |
| 180°(Dwell 20min@RT) gf/inch | 1300 | 1550 | 1750 | 1800 | 2300 | 2500 | 2900 | 1100 | 1300 | ASTM D3330 |
| Surface resistance of adhesive (Ω/口) | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | MIL 83528 |
| Operating temperature range | -40°C～120°C | — | ||||||||
2.Double- sided Fabric Tape
Product Construction

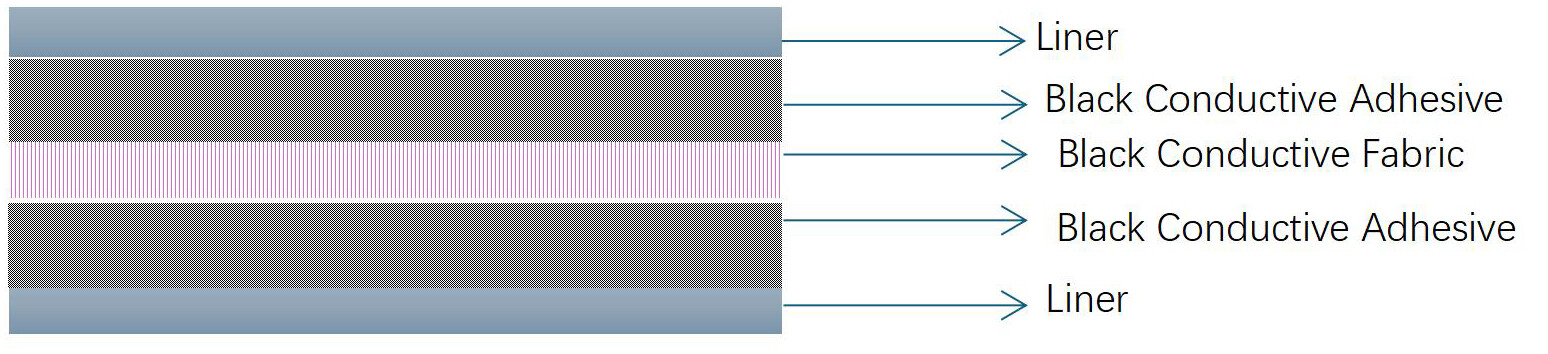

Black Electrically Conductive Double- sided Fabric Tape 320xxBF Series

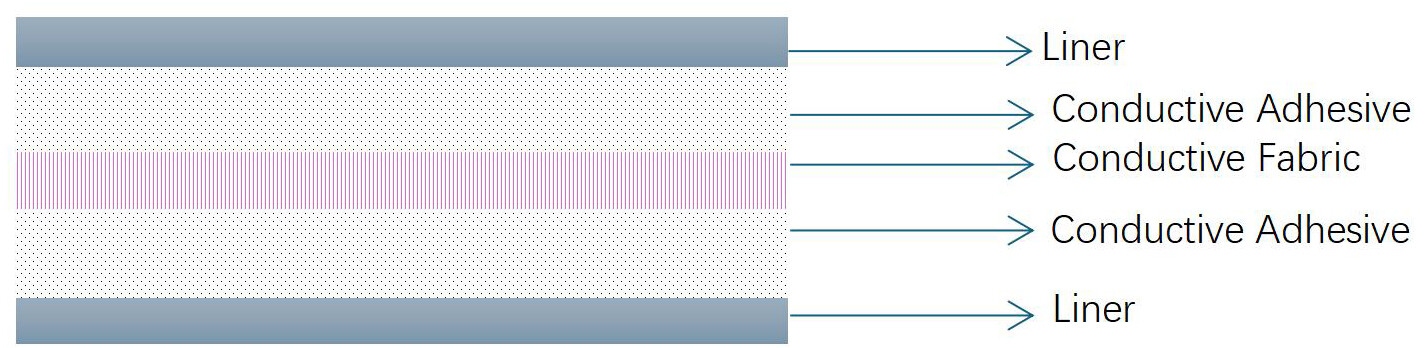

Electrically Conductive Double- sided Fabric Tape 320xxF Series
| Property | 32030F | 32050F | 32100F | 32150F | 32200F | 32250F | 32300F | 32400F | 32030BF | 32050BF | 32080BF | 32100BF | 32150BF | 32200BF | 32250BF | 32300BF | Test method |
| Thickness | 30um
(28-38) |
50±10% | 100±10% | 150±10% | 200±10% | 250±10% | 300±10% | 400±10% | 30um
(28-38) |
50±10% | 80±10% | 100±10% | 150±10% | 200±10% | 250±10% | 300±10% | |
| Color | Grey | Black | — | ||||||||||||||
| 180peel adhesion
（dwell 20min@RT) gf/inch |
1200 | 1600 | 2200 | 2300 | 2300 | 2400 | 3000 | 3300 | 1100 | 1500 | 1600 | 1800 | 1900 | 2000 | 2100 | 2300 | ASTM D3330 |
| Surface resistance of adhesive (Ω/口) | ≤0.01 | ≤0.1 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | MIL 83528 | |||||||
| Contact resistance through adhesive (Ω/inch²) | ≤0.05 | ≤0.012 | ≤0.012 | ≤0.015 | ≤0.03 | -MIL 83528 | |||||||||||
| Operating temperature range | Long-term 85°C Short-term 125°C | — | |||||||||||||||
