Thermal conductive tape is a double-sided adhesive tape specifically designed for heat dissipation, widely used in electronic products, heat sinks, LED lighting fixtures, and other equipment requiring effective thermal conduction. Its primary function is to fill the uneven gaps between heat sources and metal products, effectively transferring the heat generated by electronic devices to achieve cooling and heat dissipation effects.
AT920-s
Thermally conductive double-sided adhesive tape offers excellent thermal conductivity, electrical insulation, strong adhesion, and low thermal resistance, providing efficient heat dissipation and secure bonding while improving assembly efficiency. It effectively fills microscopic gaps between heat-generating components and heat sinks, reducing interfacial thermal resistance and rapidly transferring heat to ensure stable, long-term device operation. The product provides dielectric breakdown resistance of up to 7 kV and thermal conductivity of up to 3.5 W/m·K, ensuring excellent electrical insulation. Its adhesion and bonding strength increase as the operating temperature rises, delivering more reliable fixation. Custom cutting and die-cutting services are also available to accommodate various sizes, shapes, and application requirements. It is widely used in LED lighting, power supplies, consumer electronics, communication equipment, industrial control systems, and thermal management modules.
Datasheet Download
FEATURES
/ Thermal conductivity: 3.5 W/m·K
/ Excellent adhesive properties
/ Designed for manufacturing
/ Excellent long term reliability
CONFIGURATIONS
/ Roll form
/ Sheets form

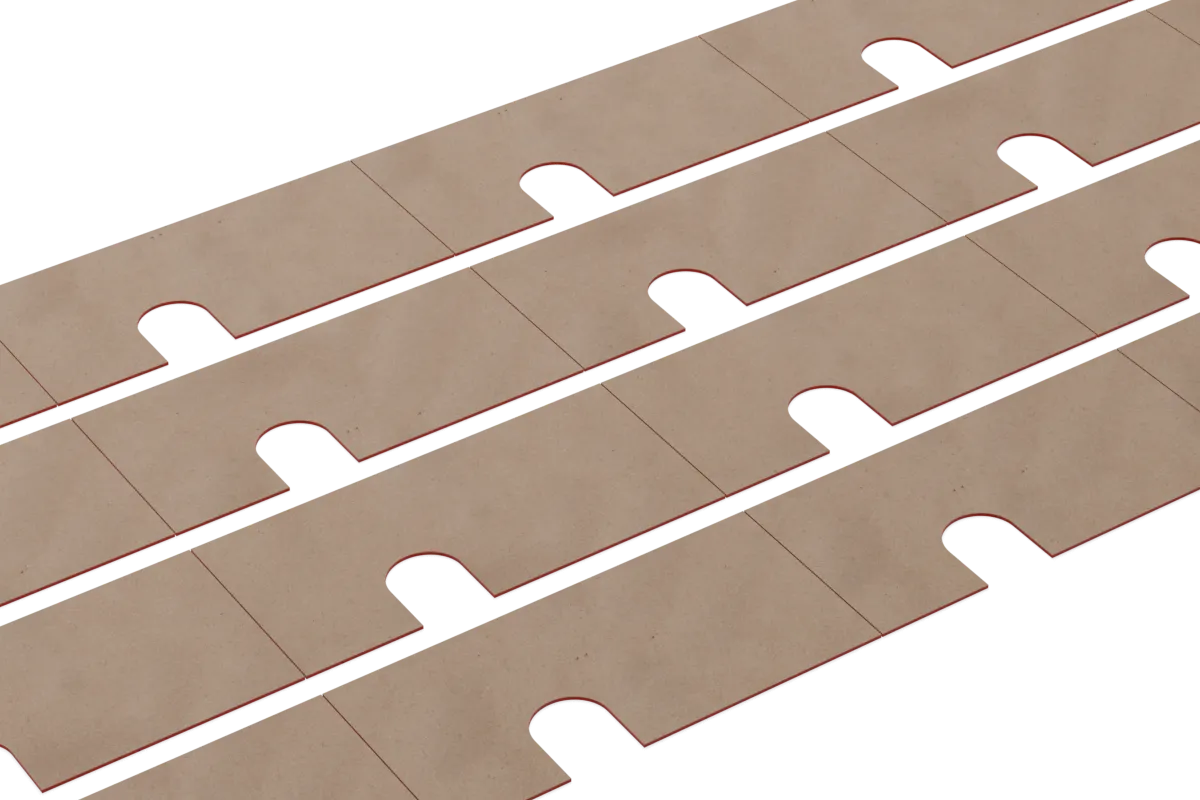

/ Die-cuts parts
TYPICAL APPLICATION
/ Automotive electronics
/ Telecommunication hardware
/ LED light bar & LED lamp
/ Between any heat-generating component and a heat sink
/ 5G base station & infrastructure
/ EV electric vehicle
Thermal Resistance vs. Pressure
TYPICAL PROPERTIES
| Item | AT920-s | UNIT | TEST METHOD |
|---|---|---|---|
| Color | White | – | Visual |
| Reinforced layer | None | – | – |
| Thickness | 0.50~3.0 | mm | ASTM D374 |
| Density | 2.6 | g/cm³ | ASTM D792 |
| Application temperature | -60~120 | °C | – |
| Short time temp. @15min | 200 | °C | – |
| Dielectric breakdown | 7 | KV | ASTM D149 |
| ROHS & REACH | Compliant | – | – |
| THERMAL | |||
| Thermal conductivity | 3.5 | W/m·K | ASTM D5470 |
| Thermal impedance@5psi | 0.54 | °C-in²/ W | ASTM D5470 |
| Thermal impedance@15psi | 0.50 | °C-in²/ W | ASTM D5470 |
