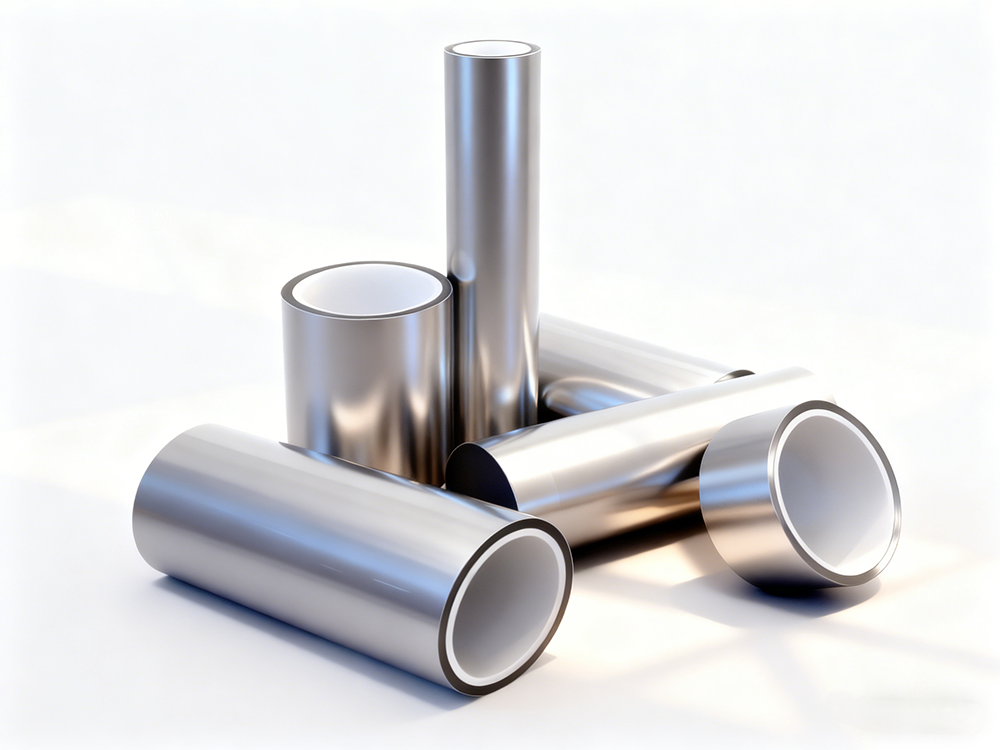

Product Description
MINORU EMI Absorber materials are composite material consisting of a carrier resin and magnetic fillers and an acrylic pressure sensitive adhesive. This magnetic material is designed to interact and influence an EMC field. The EMC field could be generated for various reasons and in many applications， it is desired to focus the EMC field across a specific volumetric area, such as a secondary EMC field pick-up coil or antenna.
Features

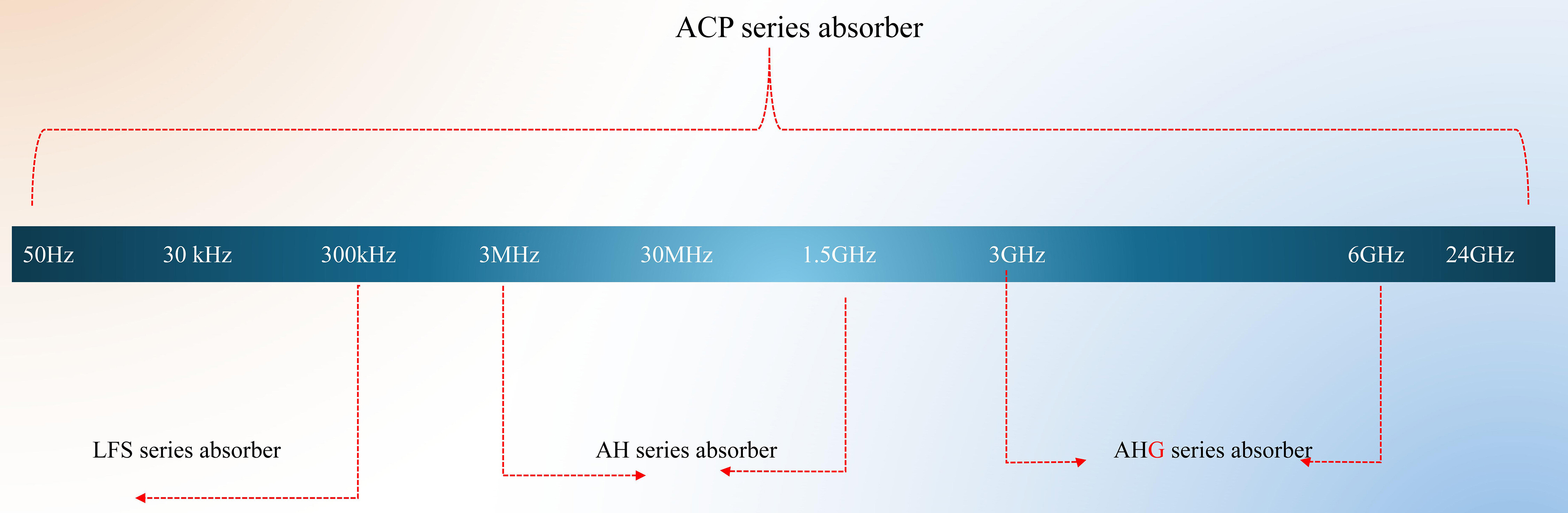

- Excellent Absorbing performance from 50Hz to 24GHz
- Pressure sensitive acrylic adhesive
- Black PET protection tape cover film (optional)

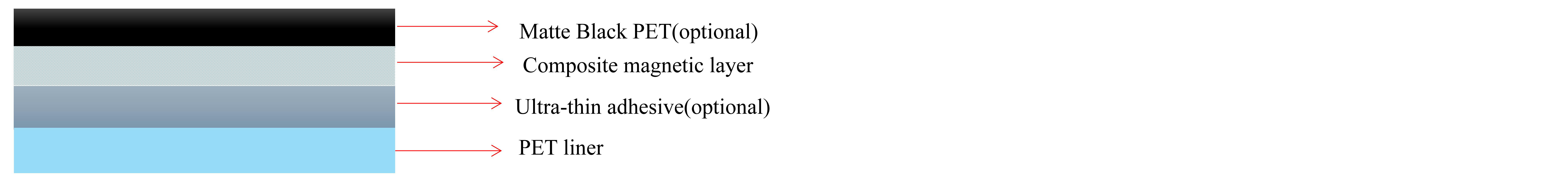

Product Construction
Application Ideas
- Shield DC and low frequency magnetic field
- Wireless power system power transfer efficiency improvement
- Potential devices include mobile phone, computers, tablets, measurement and sensors.
- Assembly of magnet coil for Wireless Charging System
- Electronic equipment protection for automobile applications
LFS series absorber
| Product No. | Thickness um | Temperature Range
（ °C） |
Effective Electromagnetic
Wave Suppression |
Size |
| LFS30 | 30±10% | -40°C～120°C | ≤300KHz | 50mm*200m |
| LFS50 | 50±10% | -40°C～120°C | ≤300KHz | 50mm*200m |
| LFS100 | 100±10% | -40°C～120°C | ≤300KHz | 50mm*200m |
AHG series absorber
| Product No. | Typical Permeability
@3MHz |
Thickness
（um） |
Temperature Range
（ °C） |
Effective Electromagnetic
Wave Suppression |
Resistance
Ω |
| AHG10xx | 10 | 30～ 1000 | -40°C～120°C | 3GHz∼ 6GHz | 106 |
| AHG45xx | 45 | 30～ 1000 | -40°C～120°C | 3GHz∼ 6GHz | 106 |
AH series absorber
| Product No. | Typical Permeability
@3MHz |
Thickness
（um） |
Temperature Range
（ °C） |
Effective Electromagnetic
Wave Suppression |
Resistance
Ω |
| AH50xx | 50 | 30～ 1000 | -40°C～ 120°C | 3MHz ∼ 1.5GHz | 106 |
| AH80xx | 80 | 30～ 1000 | -40°C～ 120°C | 3MHz ∼ 1.5GHz | 106 |
| AH100xx | 100 | 30～ 1000 | -40°C～ 120°C | 3MHz ∼ 1.5GHz | 106 |
| AH120xx | 120 | 30～ 1000 | -40°C～ 120°C | 3MHz ∼ 1.5GHz | 106 |
| AH150xx | 150 | 30～ 1000 | -40°C～ 120°C | 3MHz ∼ 1.5GHz | 106 |
| AH180xx | 180 | 30～ 1000 | -40°C～ 120°C | 3MHz ∼ 1.5GHz | 106 |
| AH200xx | 200 | 30～ 1000 | -40°C～ 120°C | 3MHz ∼ 1.5GHz | 106 |
| AH250xx | 250 | 30～ 500 | -40°C～ 120°C | 3MHz ∼ 1.5GHz | 106 |
