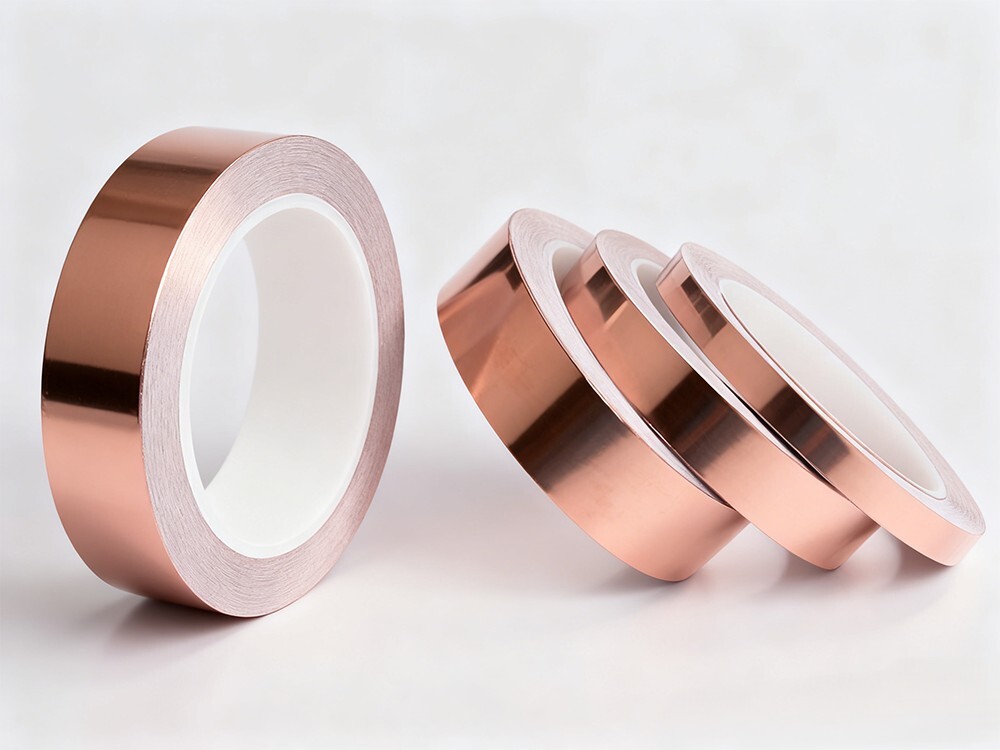

Product Description
Electrically Conductive Copper Tape not only provides shielding performance but also enhances the physical properties of the tape for good workability. They provides improved electrical performance and reliable electrical contacts over time compared to other conventional single sided conductive tapes. They are typically used for applications requiring reliable electrical connections between electronic components, reliable ESD grounding for display and EMI shielding.

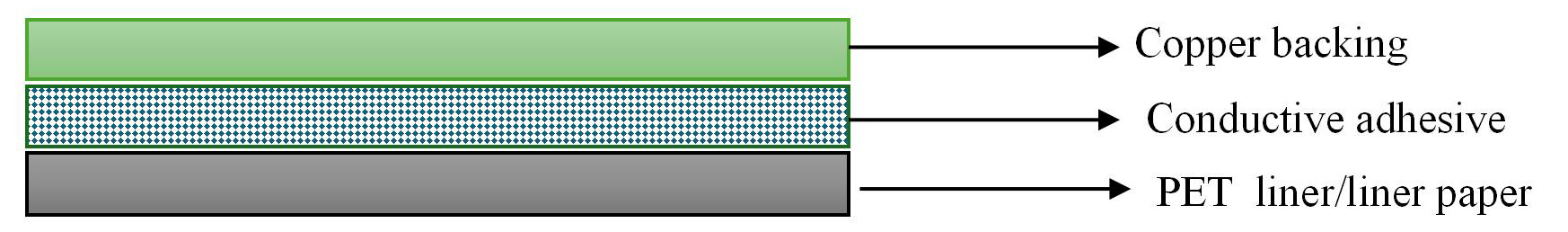

Product Construction
Electrically Conductive Single-sided Copper Tape CUxxS
Features
- XYZ-conductive through the adhesive
- Best conformability and edge conformance with very thin foil backing
- Best EMI/ESD performance ，Best electrical performance over time, Best overlap resistance
- Best electrical contact at small size area
- Good residue performance
| Product No. | CU015S | CU03S | CU04S | CU05S | CU06S | CU08S | CU10S | Test Method |
| Color | Copper color | — | ||||||
| Tape type | Conductive Adhesive | — | ||||||
| Tape thickness | 15um(15um-20um） | 30um±10% | 40um±10% | 50um±10% | 60um±10% | 80um±10% | 100um±10% | — |
| 180° peel adhesion
(dwell 20min@RT) gf/inch |
1300 | 1700 | 1700 | 1900 | 1900 | 2000 | 2100 | ASTM D3330 |
| Surface resistance of adhesive(Ω/inch²) | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | MIL 83528 |
| Contact resistance through adhesive | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | MIL 83528 |
| Liner type | PET liner | Paper liner | — | |||||

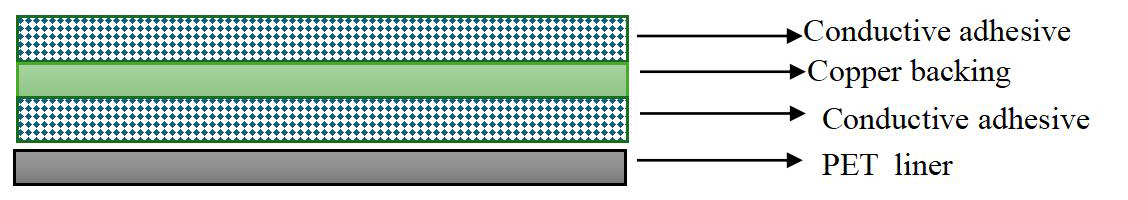

Electrically Conductive Single-sided Copper Tape CUxxD
| Product No. | CU01D | CU20D | CU03D | CU05D | Test method |
| Color | Copper color | — | |||
| Tape type | Conductive Adhesive | — | |||
| Tape thickness | 10um（10um-13um） | 20um±15% | 30um±10% | 50um±10% | — |
| 180° peel adhesion(dwell 20min@RT) | 800 gf/in | 900 gf/in | 1100 gf/in | 1700 gf/in | ASTM D3330 |
| Contact resistance through adhesive | Ω | MIL 83528 | |||
| Operating temperature rang | -40°C～125°C | — | |||
