Product Key Features
- QSFP28 NRZ: 25Gbps x 4 Lanes
- QSFP28 PAM4: 100Gbps x 1 Lane
- MPO Breakout PSM4 : Bi-directional & Duplex
Product Specifications 100G QSFP28
| Product Type | Part Number | Reach | Wavelength | Tx Power | Rx Sensitivity | Power Budget |
|---|---|---|---|---|---|---|
| 100G SR4 | QFP28-MSMPO-CAA | 100m | 4x 850nm | -8.4 ~ +2.4 dBm | -10.3 dBm | 1.9 dB |
| 100G LR4 | QFP28-LR3LC-ILA | 10km | 4 x LAN-WDM | -4.3 ~ +4.5 dBm | -10.6 dBm | 6.3 dB |
| 100G ER4 Lite | QFP28-EL3LC-ILB | 30km | 4 x LAN-WDM | -2.5 ~ +4.5 dBm | -17.0 dBm | 14.5 dB |
| 100G ER4 | QFP28-ER3LC-ILB | 40km | 4 x LAN-WDM | -2.9 ~ +4.5 dBm | -20.9 dBm | 18.0 dB |
| 100G ZR4 | QFP28-ZR3LC-ILB | 80km | 4 x LAN-WDM | +1.5 ~ +7.0 dBm | -28.0 dBm | 29.5 dB |

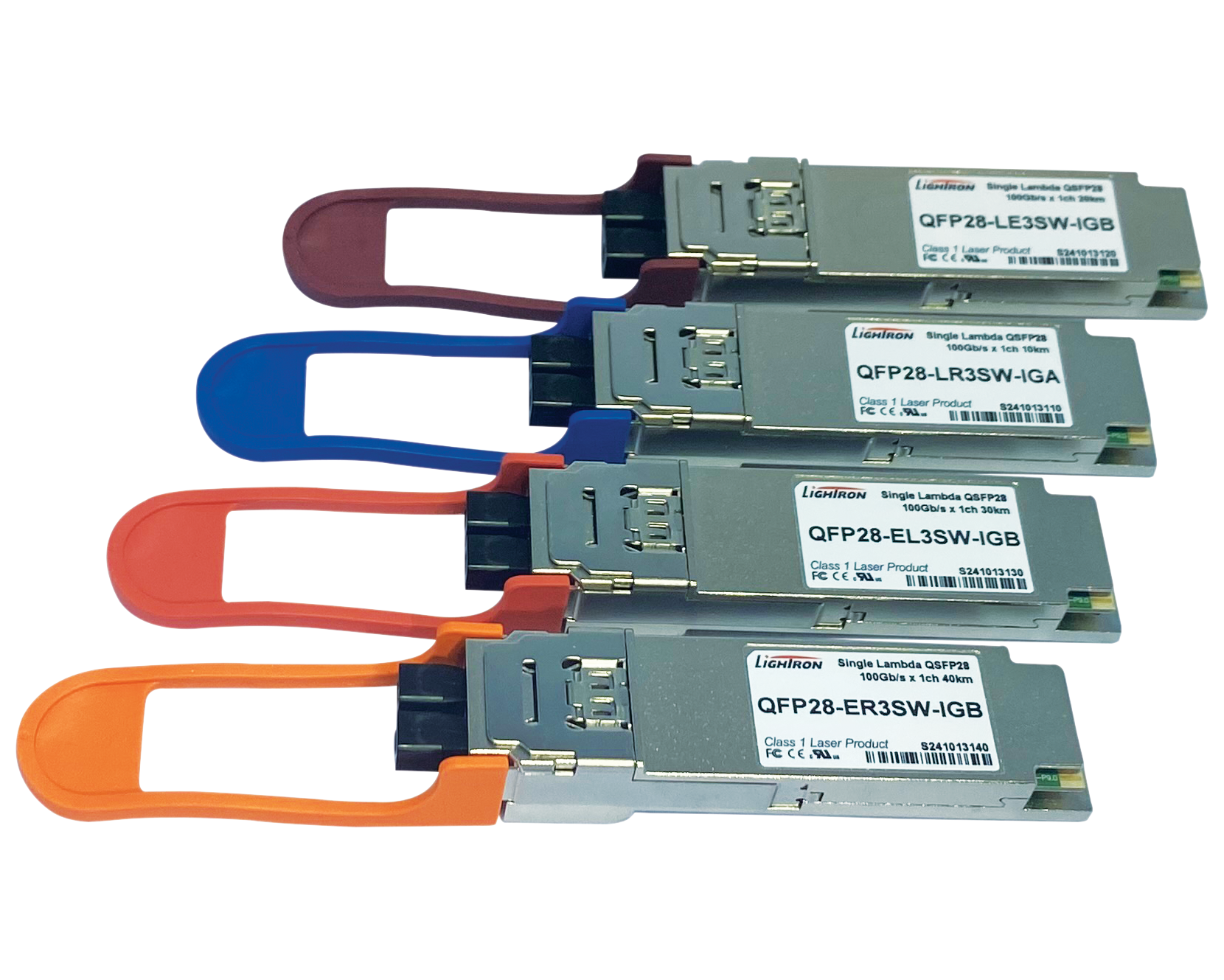

| 100G LR1 | QFP28-IL3SW-IBB | 10km | 1 x LAN-WDM | -1.4 ~ +4.5 dBm | -4.94 dBm | 3.54 dB |
| 100G ER1 | QFP28EL3SW-IBB | 30km | 1 x LAN-WDM | +3.0 ~ +6.4 dBm | -12.67 dBm | 12 dB |
| 100G PSM4 | QFB28-EIMPO-CHA-xx | 10km | 4 x 1270nm | -5.0 ~ +2.5 dBm | -12.0 dBm | 7.0 dB |
| 100G PSM4 | QFB28-HIMPO-CEA-xx | 10km | 4 x 1330nm | -5.0 ~ +2.5 dBm | -12.0 dBm | 7.0 dB |
| 100G PSM4 | QFP28-FRMPO-CAA-xx | 2km | 4 x 1310nm | -6.8 ~ +2.0 dBm | -10.3 dBm | 3.5 dB |
