Datasheet
Part Number
KSP-00001, KSP-00002
Product Features
Termination is accomplished by placing the conductors into the proper wire slots in the wire cap. Place the wire cap onto the plug and use pliers to squeeze the wiring cap. All eight conductors are simultaneously terminated when the wire cap is squeezed. This process ensures quick, consistent, reliable terminations. The IDC is designed to accommodate different diameter conductors from 22 AWG- 26 AWG Solid Wire. The Field Termination Plug meets TIA-568.2-D Category 6A component performance, Cat 5e/6 and 6A Direct Attach link and channels.
Ideal for use to provide high-bandwidth wireless access points and other IP-enabled devices such as: Surveillance cameras and infrastructure monitoring. A field modular plug that is simple to terminate and meets Cat 6A performance requirements and is also ideal in premise automation such as lighting, HVAC and other environmental sensor applications.

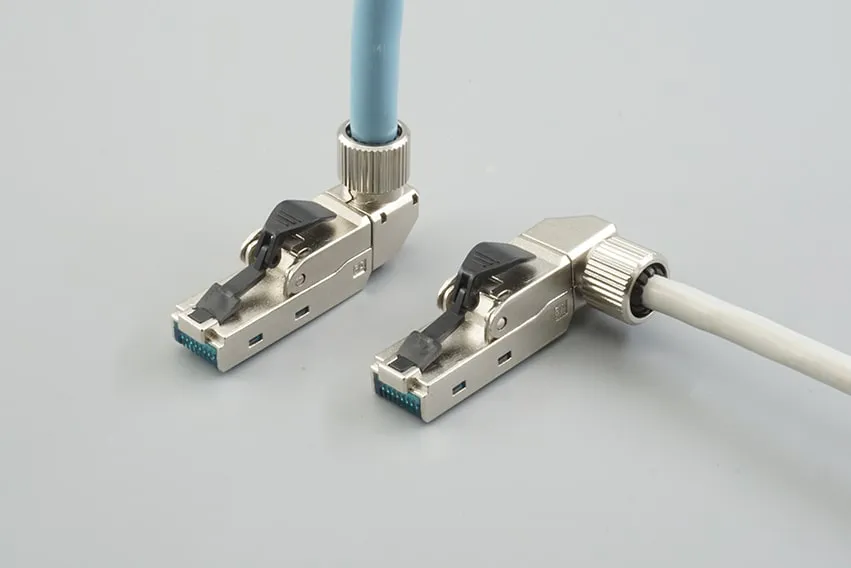

Available in straight and right angled configuration.
Benefits
- Supports 10gb networks
- Designed to accommodate conductors from 22 AWG – 26 AWG
- IP 20 rating; TIA-568.2-D Cat 6A MPTL compliant; Backward compatible with C6/C5e MPTL
- UL approved
- Ideal for wireless access points and IP-enabled devices
- POE+ Compliant
- Tool-free, no punch down tool required
- RoHS compliant
- Plug to plug not supported
Technical Information
MECHANICAL
Transmission performance: Cat.6A/Class EA Direct attach link and channels
Plug protection category: IP 20
Wiring label: TIA 568A/B & PNO
Working temperature: -40 °C to 85 °C
Termination capability:
Solid wire: 22-26 AWG
Stranded wire: 22-27 AWG
Re-termination capability: 5 times
Supporting cable diameter: 6-9mm
Plug Housing: Zinc Alloy
Plug Pins: Phosphor bronze with 50u” gold plating
Durability: 750 mechanical cycles
ELECTRICAL
Current rating: 1.5A
Dielectric withstanding voltage: 1000V DC
Insulation resistance: 500M Ω min.
Contact resistance: 20m Ω max
COMMERCIAL STANDARDS
IEC 60603-7-5
UL 1863, UL 2043
CSA C22.2
TIA-568.2-D Cat 6A
TIA-1096-A
IEC-60603-7-51
IEEE 802.3 bt POE Type 3 / Type 4 with 90W at PSE Side
EN 50173
