Datasheet
Part Number
PID-00258, PID-00258-02, PID-00259, PID-00259-02, PID-00260, PID-00260-02, PID-00261, PID-00261-02
Product Features

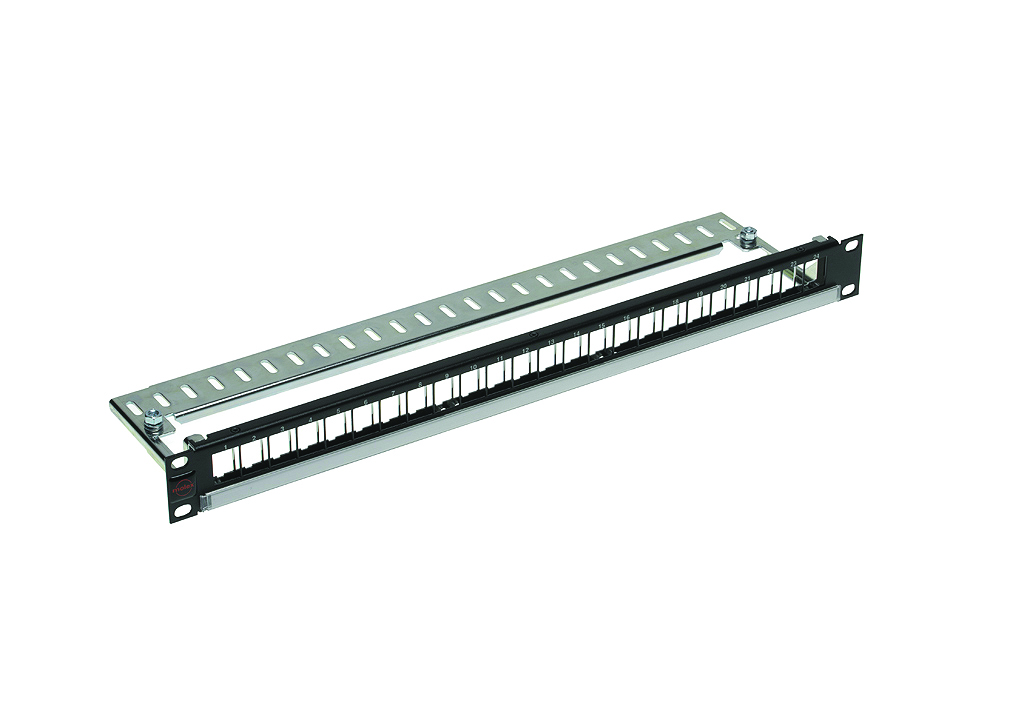

DataGate Category 5E UTP, Category 6 UTP, or Category 6A Shielded Jacks can be terminated to cable and then snapped into this DataGate patch panel. The patch panel and rear cable manager are constructed of cold-rolled steel for strength and durability.
Benefits
- Available in 1U 24P Flat, 1U 24P Angle, 2U 48P Flat, 2U 48P Angle
- Easy snap in DataGate UTP or Shielded Jacks (sold separately)
- Modularity provides installation flexibility
- Front portable labeling
- Individually removable patch panel ports
- Removable cable management shelf ensures bend radius compliance
- ANSI and metric hardware kit included
- Ideal for use with industry standard 110 punch down tool
Technical Information
Mechanical
Patch Panel
Material: CRS (cold rolled steel)
Thickness: 0.6” (1.5mm)
Coating: Powder Coat Black or White
Physical
Dimensions:
24 Port Patch Panel:
44mm X 125mm X 483mm (1.73” X 4.92” X 19.01”)
24 Port Angled Patch Panel:
44mm X 235mm X 483mm (1.73” X 9.25” X 19.01”)
48 Port Patch Panel:
88mm X 125mm X 483mm (3.46” X 4.92” X 19.01”)
48 Port Angled Patch Panel:
88mm X 235mm X 483mm (3.46” X 9.25” X 19.01”)
