Product Key Features
- Up to 53.125Gb/s Bit Rates
- DFB-LD based Uncooled Transmitter without TEC
- EML based Cooled Transmitter with TEC
- APD and PIN-PD based Receiver with Linear TIA
- 1290nm and 1310nm Bi-Directional SFP56
- PAM4 modulation
- Single +3.3V Power Supply
- Low Power Consumption
- Operating Case Temp : Industrial -40~+85°C

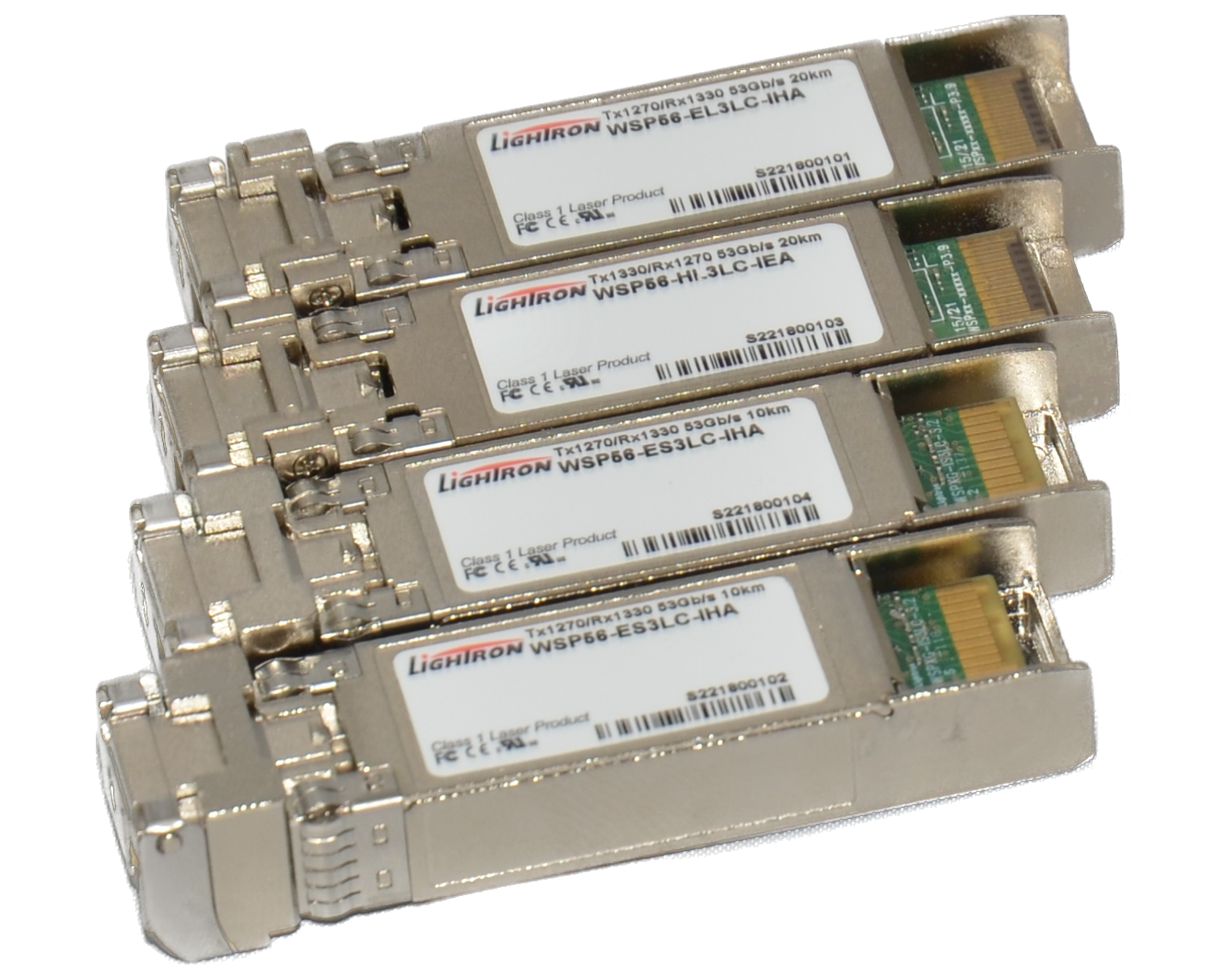

Product Specifications 50G SFP56 Bi-Di
| Product Type | Part Number | Reach | Wavelength | Tx Power | Rx Sensitivity | Power Consumption |
|---|---|---|---|---|---|---|
| SFP56 Bi-Di | WSP56-x1)I3LC-Ix1)A | 10km | E (1270nm) F (1290nm) G (1310nm) H (1330nm) |
-4.5 ~ +4.2dBm | Max(-8.4, SECQ-9.8)dBm | < 2.0W |
| SFP56 Bi-Di | WSP56-x1)L3LC-Ix1)B | 40km | E (1270nm) F (1290nm) G (1310nm) H (1330nm) |
+0.4 ~ +6.6dBm | Max(-15.1, SECQ-16.5)dBm | < 3.0W |
1) CWDM Wavelength: E (1270nm)
F (1290nm)
G (1310nm)
H (1330nm)
